5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Nama Produk: Badan Lampu Jalan
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks anti banyu: IP66 IP67
Indeks tahan gempa : IK08 IK09
Suhu kerja (℃): -20-60
Werna lumahing: abu-abu peteng, abu-abu cahya, ireng, disesuaikan lsp
Contain Accessories : Complete finished street lights
Fitur produk
- Body aluminium digawe saka ADC12 aluminium Die-casting, lumahing dianggep dening semprotan-lukisan kanggo Nyegah Korosi lan Ketekunan Warna.
- Desain sirip heatsink area gedhe kanggo teori cepet kanggo konveksi antarane hawa adhem lan panas, kanggo njaga boros panas sing apik saka lampu lan nambah cahya kabeh wektu.
- Kothak pemasok daya kanggo njaga lampu lengkap lan manunggal.
- Desain ventilasi kanggo nyegah bledug & nyegah banyu stagnant kanggo entuk wektu sing dawa.

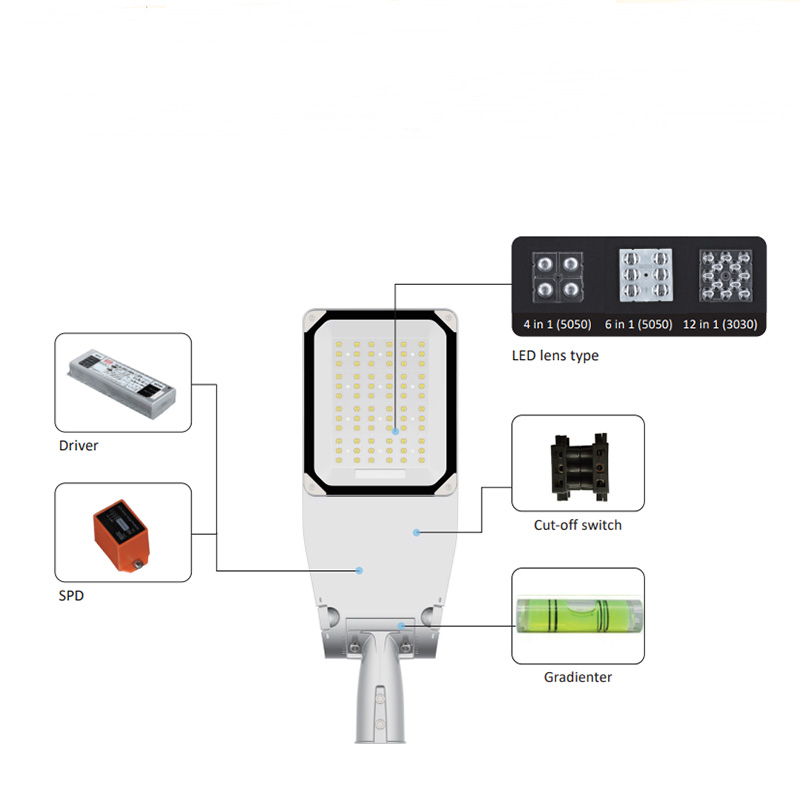

Product Details

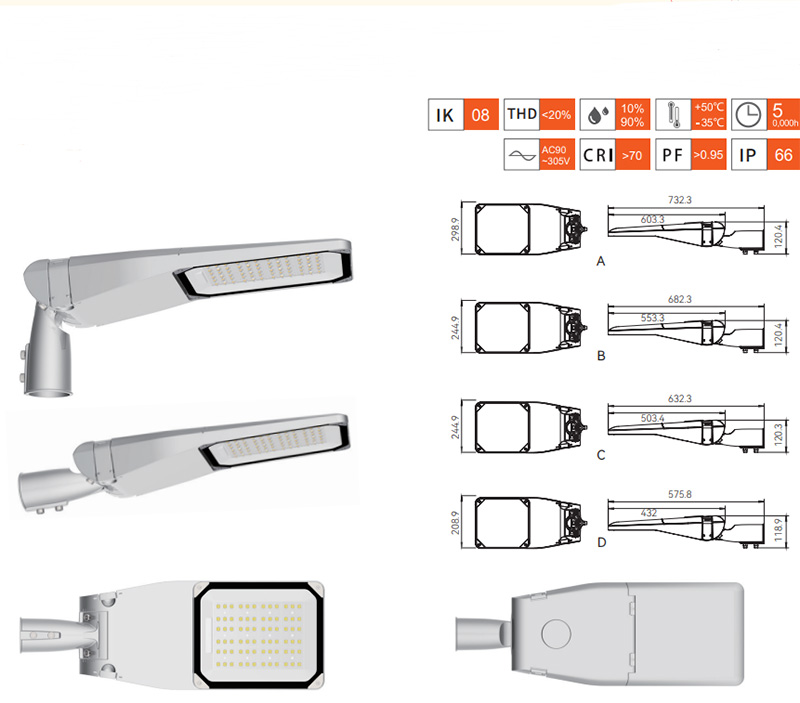

Product Size Chart
Spesifikasi lan Dimensi
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Kelas IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Bahan | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co.,Ltd. yaiku pabrikan Aluminium Die-Casting LED Light Housing Kanthi macem-macem desain lan teknologi sing dikembangake dhewe.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
